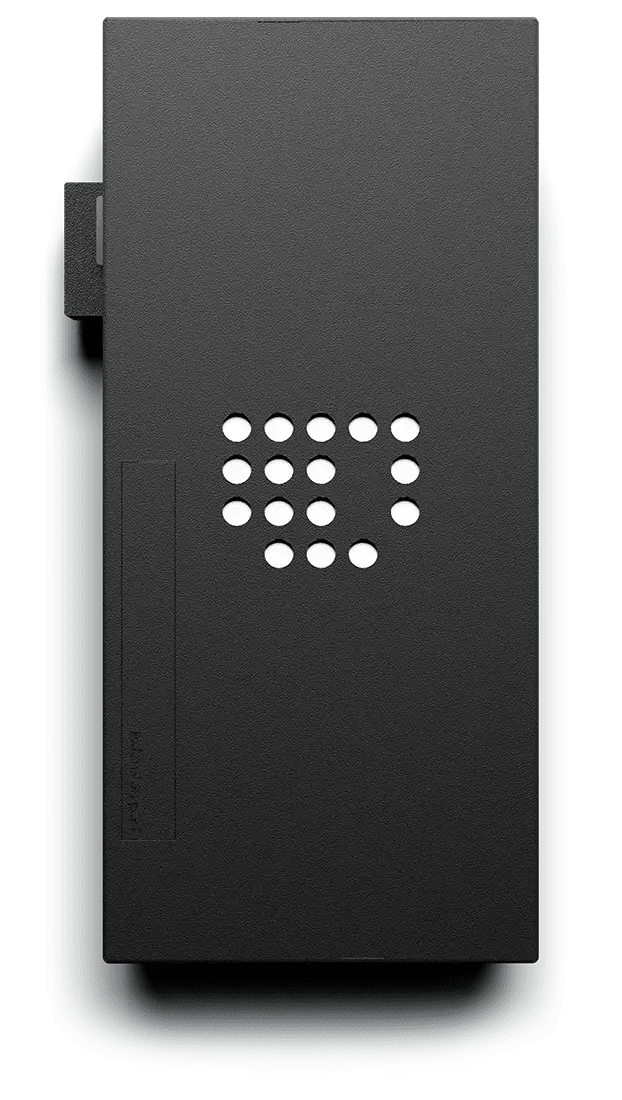

DiGidot C4 controller
The DiGidot C4 is more than just a pixel controller, DiGidot is the most advanced SPI control system on the market.
Thanks to its powerful features we are able to eliminate various peripheral hardware compared to other pixel control systems.
Create clear and more cost effective infrastructures with the DiGidot C4.
High output
16 Universes
Control
2720 RGB LEDs
Compatibility
63 SPI protocols
Multifunctional
4 Devices in one
New infrastructures
Whatever your needs are, the DiGidot C4 provides a solution for nearly every situation. It's an advanced and easy to use platform that allows you to create new possibilities to control and interact with your lighting project. Infrastructures will never look the same once you've worked with the DiGidot C4.
Scalable
A built in two-port Ethernet switch allows you to daisy-chain multiple DiGidot C4 controllers and create a huge device network to control any scale of pixel project. If you need to network more than five DiGidot C4 controllers, just add a gigabit network switch.
DiGidot C4 interface
The built in web interface is what makes DiGidot C4 controllers really stand out. A well designed, fresh looking and easy to use menu structure with many powerful tools guarantee a short learning curve.
Check our guided DiGidot C4 interface tour.
DiGidot C4 app
No matter what kind of platform you’re using, a computer, smartphone or tablet, our responsive user interface always provides full functionality and a user friendly experience.
Download our free app for smart devices and configure the DiGidot C4 wirelessly in a matter of minutes.
Swiss army knife
The DiGidot C4 is more than an Art-Net to SPI controller. Thanks to many powerful features we are able to save various peripheral hardware that usually would be needed. These savings make infrastructures a lot simpler and also more cost effective.
There's no need for any additional Art-Net Nodes, no separate DMX to SPI decoders for every universe, no signal mergers/routers and no Ethernet switches (up to five C4 controllers).
When using the DiGidot C4 Extended, you can even save on media servers, Art-Net lighting consoles, playback recorders, computers with pixel control software and you don’t need an external GPIO trigger interface. In many cases the DiGidot C4 Extended is all you need to control your pixel installation.
Free port assignment
The incoming and outgoing protocols can be configured in various combinations.
This allows the DiGidot C4 controllers to be used in following ways:
- Art-Net/sACN input to 4 x SPI output
- Art-Net/sACN input to 2 x SPI output + 1 x DMX output
- Art-Net/sACN input to 2 x DMX output
- Art-Net/sACN input to 4 x DMX output (with PxLNet Transmitter)
- Art-Net/sACN input to 4 x DMX TTL output
- Art-Net/sACN + 2 x DMX input to merged Art-Net output
- 1 x DMX input to 2 x SPI output
- 1 x DMX input for triggering + 1 x DMX output (Extended only)
- 2 x DMX input to Art-Net output, or for recording (Extended only)
- 1 x DMX input for triggering + 2 x SPI output (Extended only)
Extensive SPI library
By supporting 63 SPI protocols/IC’s the DiGidot C4 takes the lead on compatibility with SPI controlled pixel products.
| APA102 | LPD6803 | TM1804-800kHz | UCS5603A |
| APA102_8bit | MBI6024 | TM1809 | UCS7604 |
| APA104 | MBI6120 | TM1812 | UCS8903 |
| APA106 | MY9221 | TM1814 | UCS8904 |
| BS0901 | MY9231 | TM1824 | UCS9812 |
| CS882 | MY9291 | TM1914 | WES9412 |
| CX808 | PC5XS301V0500 | TM1934 | WES943 |
| DM412 | SK6812 | UCS1903_400kHz | WS2801 |
| GS8206 | SK6812RGBW | UCS1903_800kHz | WS2803 |
| GS8208 | SK6822 | UCS1904 | WS2811 |
| GW6205_400kHz | SM16703 | UCS1909 | WS2812 |
| GW6205_800kHz | SM16704 | UCS2903 | WS2812B |
| GS8208 | SM16716 | UCS2904 | WS2812S |
| INK1003 | SM16726 | UCS2909 | WS2813 |
| LPD1101 | TM1803 | UCS2912 | WS2815 |
| LD1510 | TM1804_400kHz | UCS512B3 | WS2818 |
To check performances and maximum port limits, please read our DiGidot performance Guide.
Softwares & consoles
Any industry standard Art-Net or DMX control system can be used to control the DiGidot C4.
Our customers have successfully used a wide range of professional softwares and consoles such as Pharos, Madrix, Resolume, ArKaos, MadMapper, grandMA, Skandal, Green Hippo, Chromateq, Disguise, Obsidian and many more.
Sustainable choice
Lifetime license
Every DiGidot C4 comes with a lifetime license that determines the amount of channels that can be controlled. There are no additional costs involved.
Upgradable
Licenses can be upgraded 24/7 which means maximum flexibility, even on site.
Our DiGidot license plan includes four C4 Live and four C4 Extended licenses. As long as the maximum license has not been reached, an upgrade can be done any time.
New license key’s can be obtained online or can be downloaded and installed in off line installations.
Always up to date
Our dedicated team of soft- and hardware developers is constantly working on improvements and new powerful features which are frequently released through online and offline firmware updates. This means that he DiGidot C4 platform is constantly growing and becoming more powerful without paying anything extra.

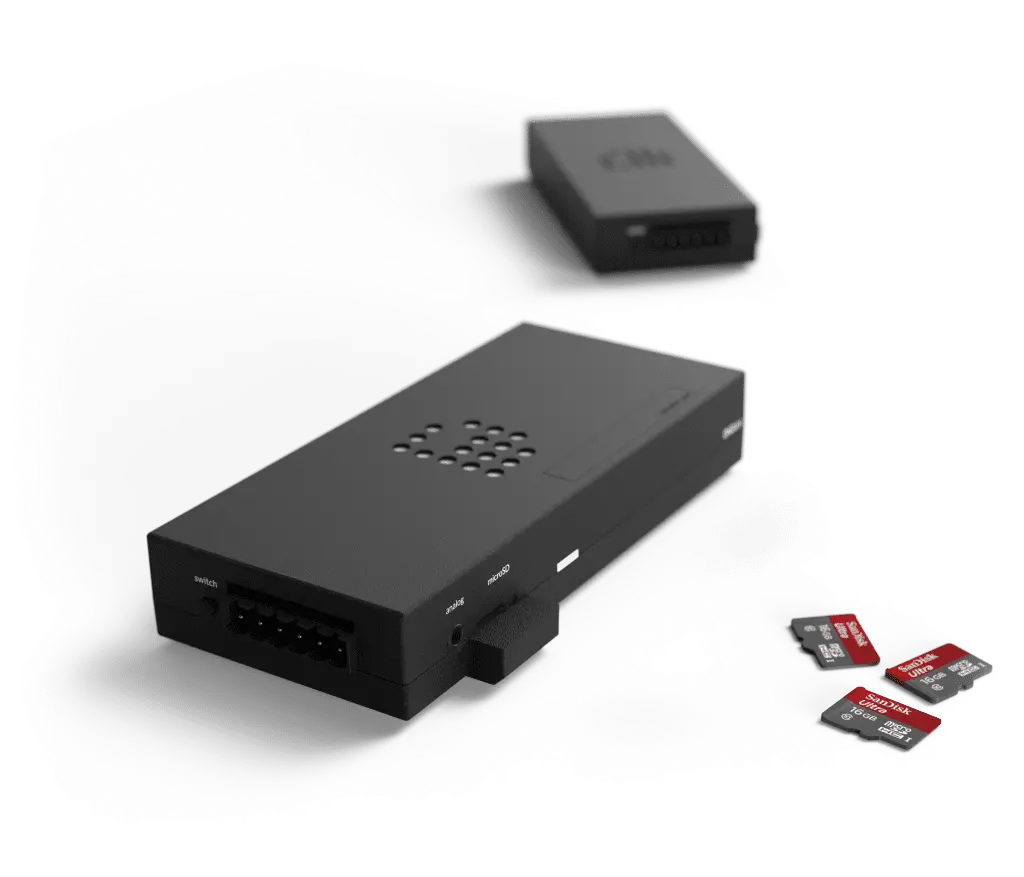

DiGidot C4 Extended is everything you need
The Extended License offers the ultimate stand alone pixel control solution which is basically the same as the C4 Live but adds many extra features such as an Art-Net and DMX playback recorder, countless powerful triggering and automation options. The C4 Extended is the only controller of its kind and combines the best of pixel control systems, media server features and extensive integration and automation options in one small sized device.

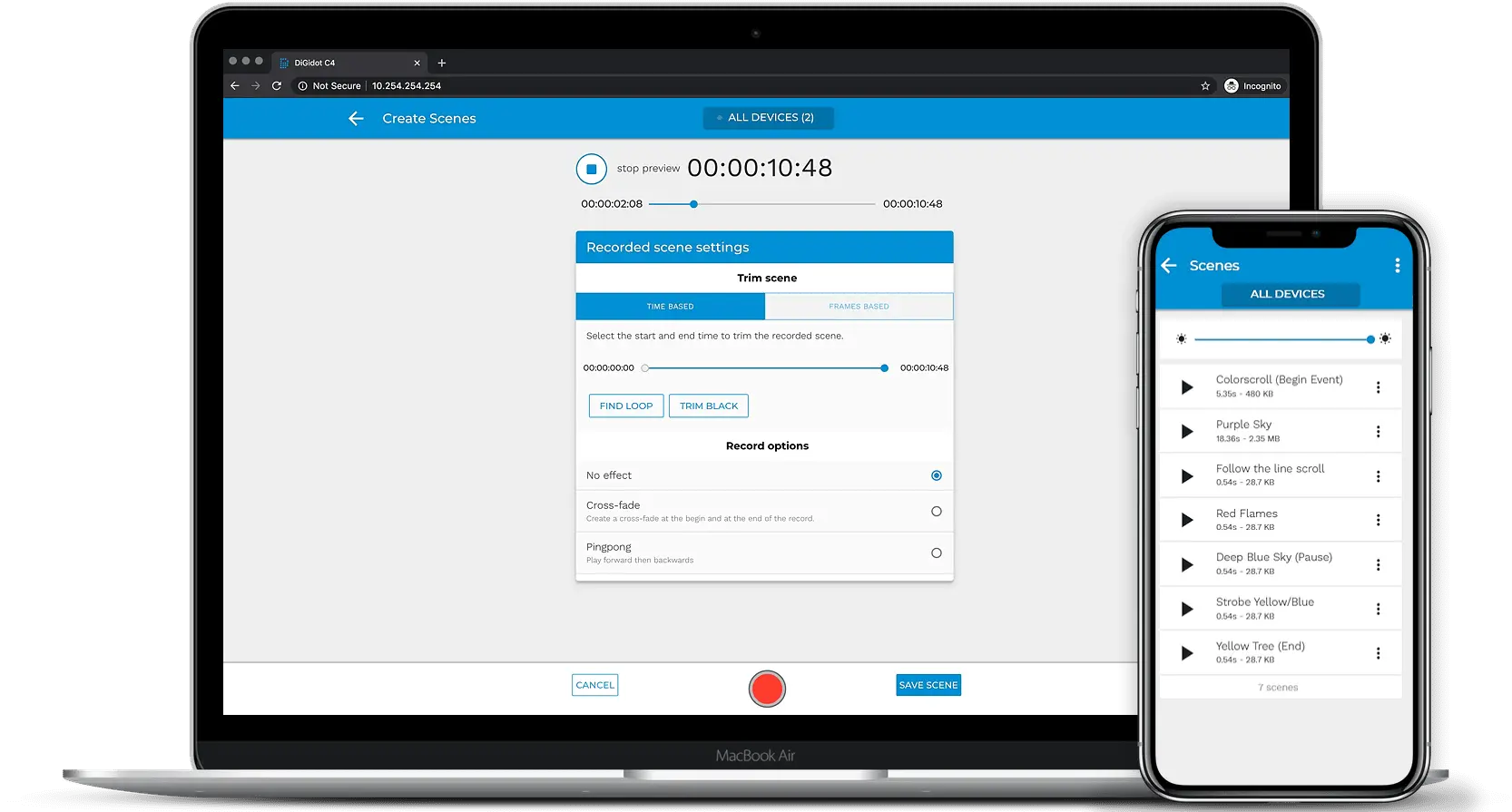

Record & playback
Record and play Art-Net or DMX streams with the DiGidot C4 Extended and use it as a stand alone control system. Create seamless loops out of recorded effects or save them as a with a pingpong or fade effect.
Generate scenes
Generate static color scenes or colorscroll effects within seconds! You don't need any pixel control software nor any programming skills. Simple effects can be generated easily using the DiGidot C4 web interface.

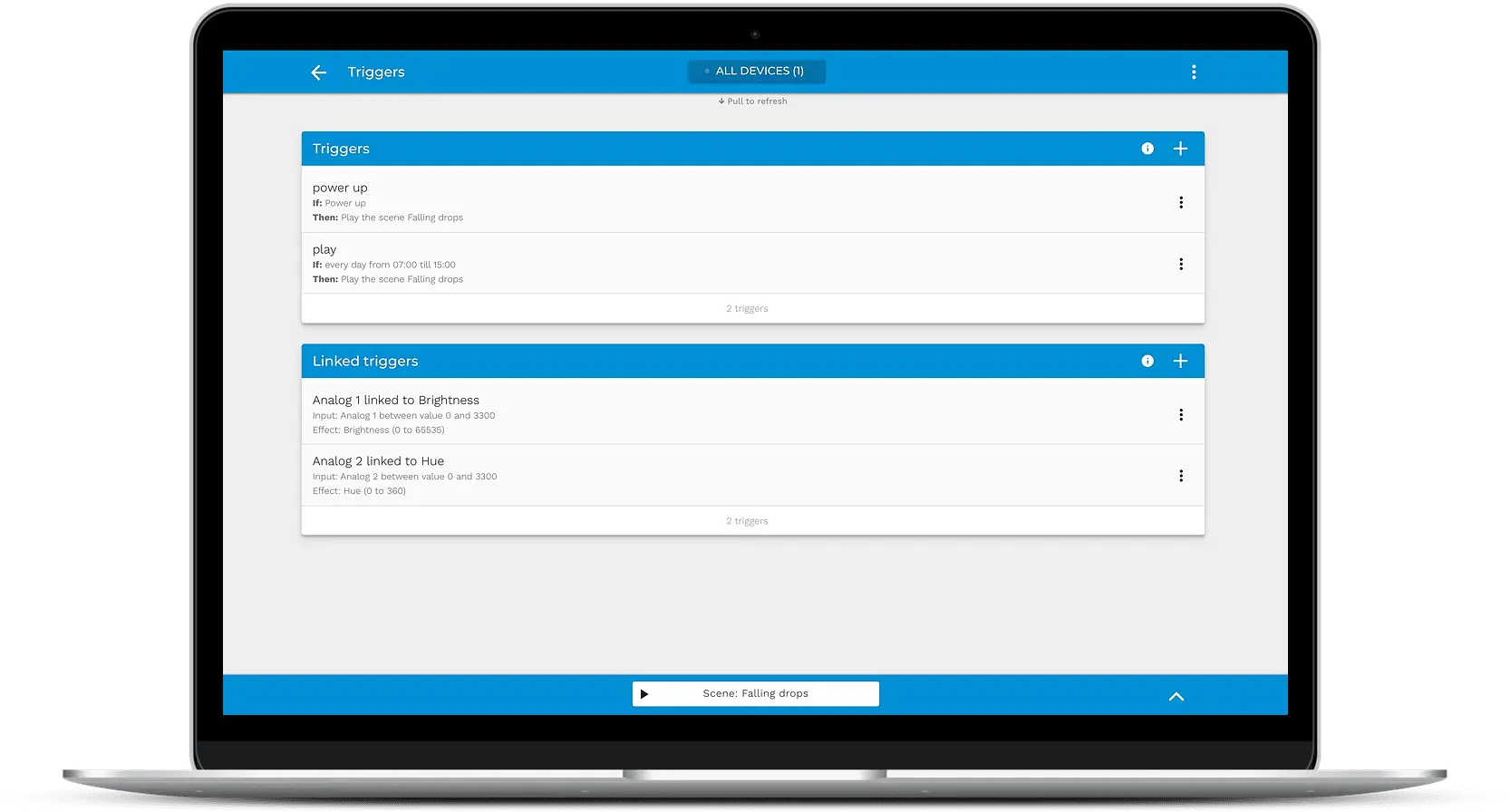

Trigger interface & live control
The DiGidot C4 Extended includes a built in trigger interface for a wide range of automation and system integration applications.
Various trigger options such as ‘Linked triggers’ offer a great amount of controllability when playing recorded scenes.
While scenes are playing you’re able adjust the brightness, saturation, speed and you can even change colors by shifting the hue. This is not only very user friendly but it also offers many possibilities for system integration.
Trigger options
3x Analog inputs
| Art-Net/DMX | Build in Time / calendar | Sunset / sunrise time |
On board button | UDP | HTTP | OSC |
Internal tasks |
Light management systems
The industry standard trigger options of the DiGidot C4 Extended ensure a very easy and fast integration in light-/building management systems. Every management system that supports one or more compatible trigger options or protocols can be used to gain control over a DiGidot C4 Extended network. This way all intelligence remains in the DiGidot C4 and external management systems act as remote controls.
Live VS Extended license
Check which license suits your project best
Feature | Live | Extended |
Universe license options | 4, 8, 12 or 16 | 1, 2, 4 or 8 |
Art-Net/DMX to SPI | ||
Input / output, network, device configuration | ||
Accounts, groups, monitor, backup functions | ||
Free updates | ||
Record and playback (standalone) | ||
Triggers |
Specs
Technical details
| Input voltage 5-24 Vdc | Max. Power consumption 5W |
| Input protocols Art-Net 1,2,3 & 4 DMX512 (2 inputs) | Output protocols Art-Net 1,2,3 & 4 (out/through) DMX512 (2 outputs) DMX TTL (4 outputs) 55+ SPI protocols |
| Output ports 4 ports | Output channels 512 / 1024 / 2048 / 4096 / 6144 / 8192 Art-Net and/or up to 1024 DMX channels |
| IP Rating IP10 | Dimensions 153 x 74 x 28 mm (L x W x H) 6.02 x 2.91 x 1.10” (L x W x H) |
| Weight 140gr | 4.93oz |
Included components
Choose your setup
License | Art-Net to SPI | Standalone | Universes | Price (excl. vat) | Quantity | |
|---|---|---|---|---|---|---|
Live 4 |
| 4 | €330 |
| ||
Live 8 |
| 8 | €450 |
| ||
Live 12 |
| 12 | €570 |
| ||
Live 16 |
| 16 | €690 |
| ||
Live 24 |
| 24 | €930 |
| ||
Extended 1 |
|
| 1 | €385 |
| |
Extended 2 |
|
| 2 | €475 |
| |
Extended 4 |
|
| 4 | €655 |
| |
Extended 8 |
|
| 8 | €990 |
|
For stock info or orders please contact our sales department: info@digidot.eu
